Results versus magnetic field

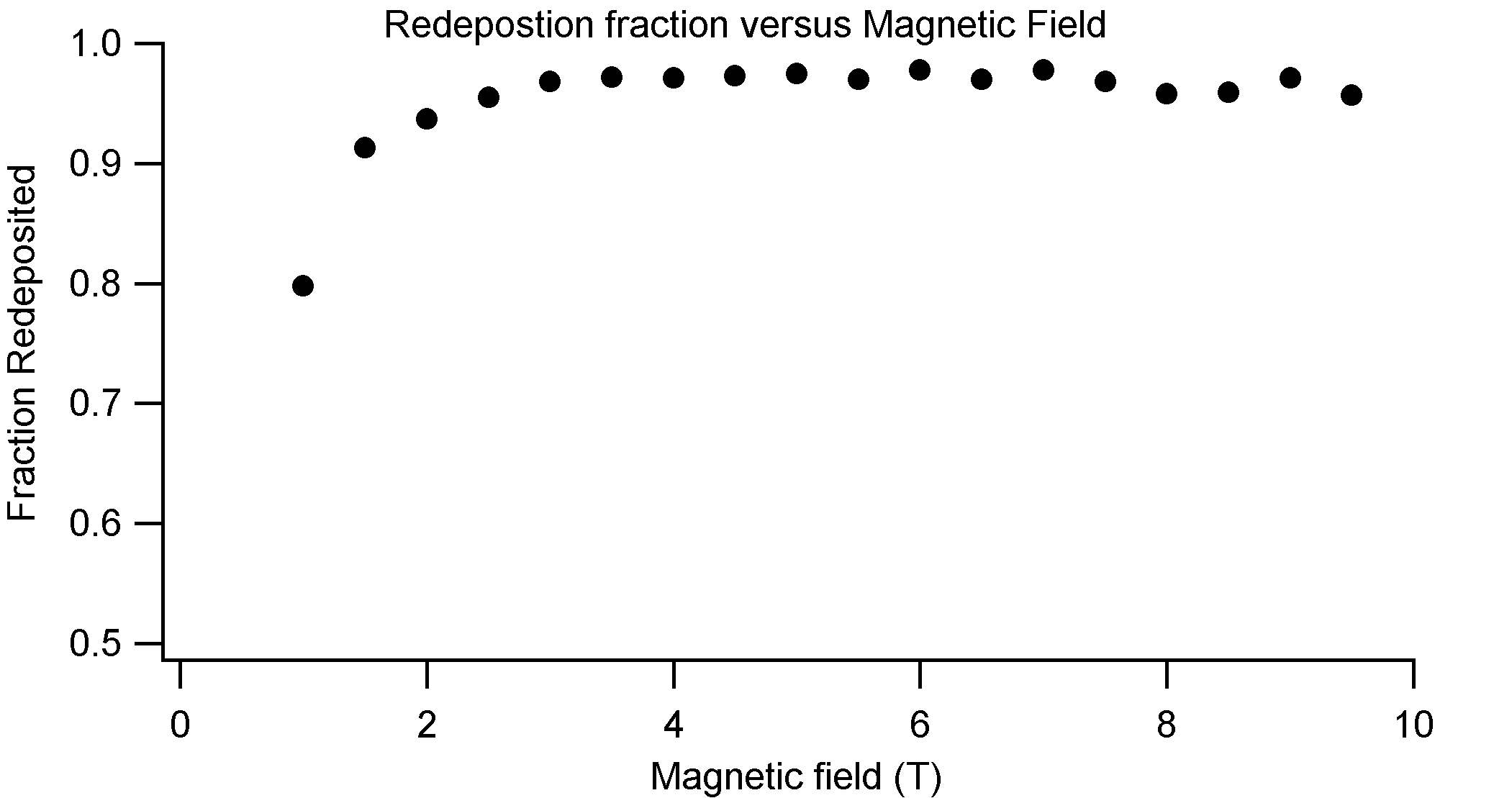

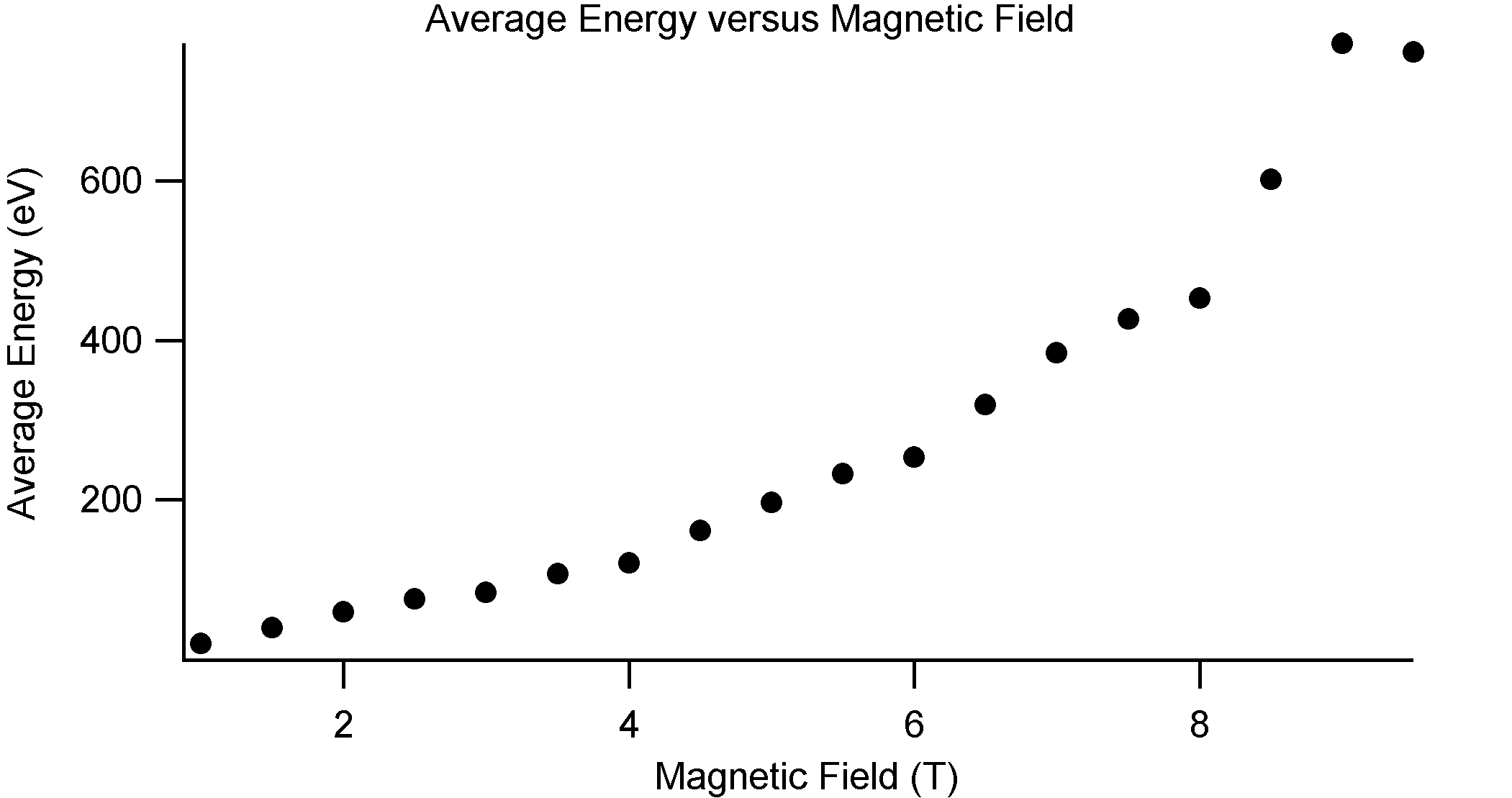

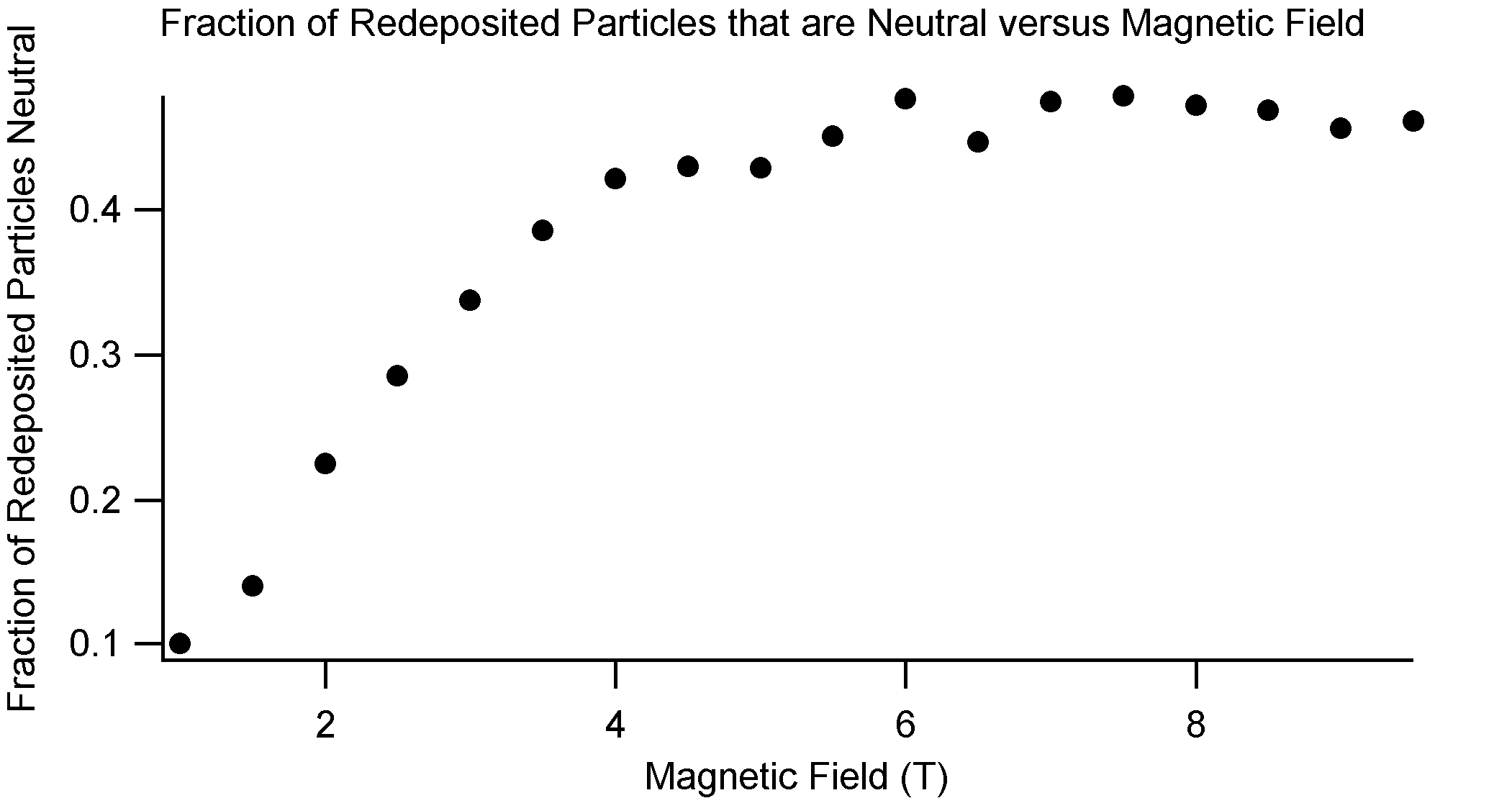

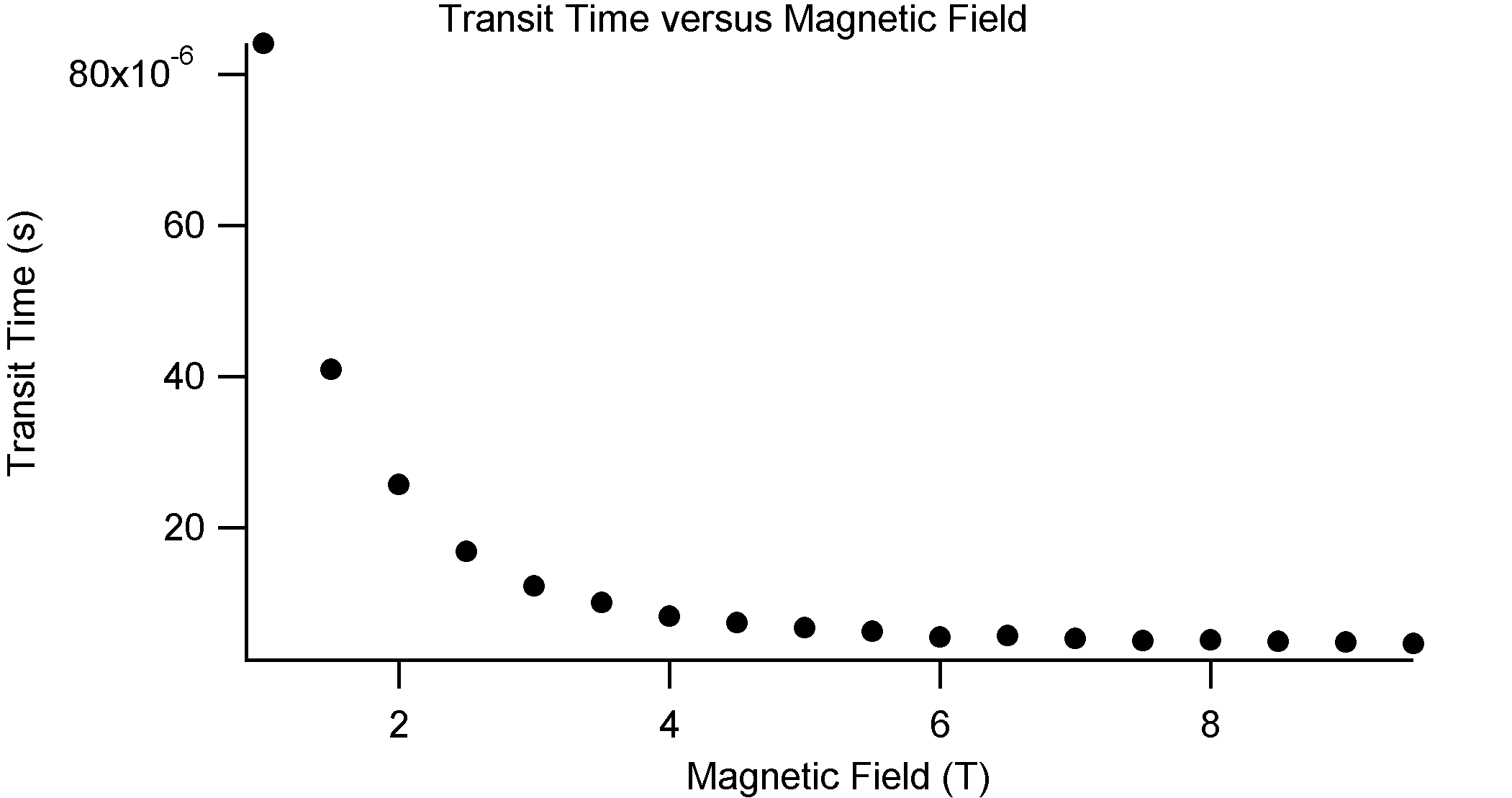

The data shown here was obtained using 1000 flights. A timestep of 10E-9 seconds was used. The plasma density was 3E+20, and the plasma temperature was 1eV. The surface temperature was 573K. A magnetic field at an angle of 87 degrees was used. The data is stored in the file bfieldvar.txt
